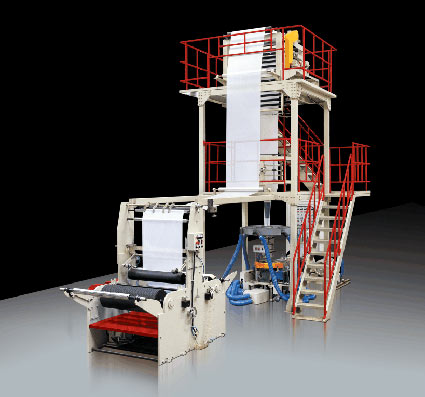

Blown film line

The line incorporates the latestextruding system, rotating die head, dual-station winder, automatic temperature control system, melt pressure monitoring and anti-static device etc. The line is able to process various polymers such as mLLDPE,LDPE, HDPE to achive the ideal film products widely used in food, commodity, industries, agricultural packaging etc.

		MB-450T	MB-900T	MB-1100T	MB-1300T	MB-1500T	MB-2200T
Max. film layflat width	mm	300	750	1000	1200	1400	2000
Film thickness	mm	0.025~0.15/0.005~0.02
Polymers	mm	mLLDPE, LLDPE, LDPE, HDPE
Screw diameter	mm	Ø50	Ø55	Ø65	Ø75	Ø80	Ø90
Screw L/D	L/D	30:1
Max. screw rotation speed	r/pm	100	100	100	100	100	80
Max. plasticizing capacity	kg/h	60	90	140	200	250	320
Max. wind-up speed	m/min	45
Max. winding diameter	mm	Ф500
Total power	kW	47	57	70	100	135	140
Overall dimension (LxWxH)	m	7×3,6×4,5	7,3×4×5,2	7,5×4×6	7,5×4×6	10×5×7,4	8×3,7×10
Total weight	ton	5	5	5	7	12	15
