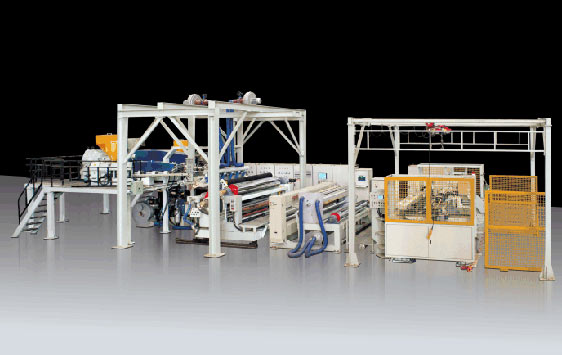

The manufacture of the line have long been specializing in the research, design and manufacturing of plastic equipment. Blown film lines adopt modulization design, they can be equipped by gravimetric dosing system and automatic die head; with advanced tension control system it achive linear tension, independent winding tension control, adopt fully digital AC servo drive and computer integrated control.



Type    ML3-2500
Film width
 mm  2200
Die lip width  mm  2500
Film thickness
 mm  0.02 - 0.15
Film structure
   A/B/C
Screwdiameter  mm Ø75/Ø120/Ø75
Screw rotation speed
 r/min  100
Machine speed
 m/min
 180
Max. output
 Kg/h  550
Max. winding diameter
 mm Ø800
Total power
 kW  650
Air compression
   >0.6 mPa 3м3/h
Cooling power
   150000 kcal/h 12/17 °C
Overall dimension (LxWxH)
 мм  17000х10000х5500
Total weight
ton  45
