Twin stage granulation line

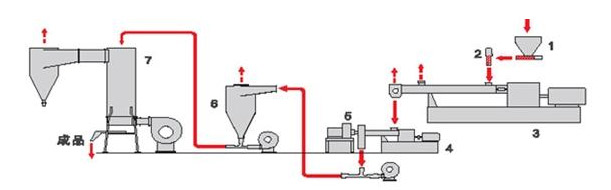

Technological line of twin stage granulator

Type		SK53-150	SK63-180	SK73-200	SK96-250
Twin Screw Diameter	mm	51	63	72	94
Single Screw Diameter	mm	150	180	200	250
Twin Screw Speed	rpm	400/600	400/600	400/600	400/600
Single Screw Speed	rpm	60	60	60	60
Twin Screw Motor Power (max)	kW	37/45	45/55	55/75	90/110
Single Screw Motor Power	kW	75/110	132/200	220/315	400/600
Throughput	Kg/h	150-650	300-1200	800-1800	1500-3800

Twin stage granulation lines have two stages of granulation : originally on a twin-screw conical extruder, and then on a single-screw extruder. In the result of the destruction process , there could be the structural and morphological changes, caused by diminishing of molecular mass, formation of branches, other chemical groups etc. and thus the substantial worsening of all physical properties. Twin stage processing of polymers allows to avoid eventual material properties worsening.
