Single stage granulation line

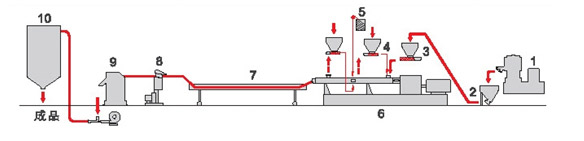

Technological line of single stage granulator

Type    SK20  SK36  SK53  SK63  SK73  SK96  SK135
Screw Diameter
mm  22  36  51 63
72
94
 132
Screw Speed
 rpm 600/900
600/900
600/900
 600/900  600/900  600/900  400/600
Motor Power
 kW  7.5/11 37/55
110/132
200/280
315/400
 600/900 1200/1600
L/D Ratio
 - 68
68
68
68
68
68
48
Throughput
 Kg/h  10-30 53-200
120-550
300-1000
650-1500
1200-330
2000-6000



The single stage  lines of granulation are intended for the extrusion of polymers, preparation of additives and subsequent receipt of granular raw material from secondary raw material. A twin-screw extruder allows to delete from material low-molecular substances, moisture, solvent and other admixtures. For the facilitation of wastes processing with bad friableness (films, thin  sheets and other) the line is equipped by the unit  allowing to process such wastes, passing the stages of crushing, agglomerating.
