HDPE/PP double wall corrugated pipe extrusion line

HDPE double wall corrugated pipes are used for drainage, waste water and serwage. Sunlight manufactures extrusion line for producing HDPE corrugated pipes in diameters of OD 63mm up to 1500mm.The complete line is operated and controlled by a automation system, which enables customers to produce the pipes in hight quality .

pipe diameter, мм	single screw extruder	forming machine	spray bath	cutting saw	stacker
63-160	SJ-65×30	SBZ160A		SQG160A	JGJ1120
	SJ-90×30
63-250	SJ-90×30	SBZ250	LQM250	QGM250	JGJ250
	SJ-75×30
200-400	SJ-75×33	SBZ500C	LQM6330	QG6330A	JGJA500
	SJ-75×30
500-800	SJ-90×33	SBZ1000C	LQM1000	QG9030A	JGJ1000
	SJ-120×33
800-1200	SJ-120×33	SBZ1500C	LQM1500	QG1500	JGJ1500
	SJ-150×33

160mm OD HDPE/PP double wall corrugated pipe extrusion line

1. Co-extrusion technology

2. The die head has two structures: independent extrusion structure and co-extrusion structure

3. Die head have water and air circular system and form the double wall corrugated pipe by cooling water and compressed air.

4. Extruder and forming machine can affect ganged function

5 . Manual and automatic function

6. Corrugator adopt horizontal and full closed structure, easy operation and beautiful, free appearance

7. Forming moulds cooled by air and water.

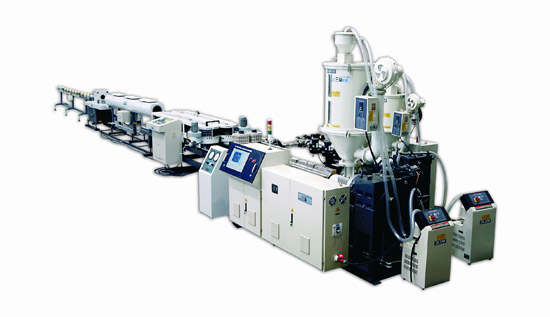

HDPE/PP double wall corrugated pipe extrusion line(ID63-250mm/ΦID200-Φ400)

1.Double wall corrugated pipe extrusion line(OD63-250mm/OD200-400mm),This plant is high output and adopt water cooling system.

2.Co-extrusion technology.

3.The die head has two structures: independent extrusion structure and co-extrusion structure.

4.Die head have water and air circular system respectively and form the double wall corrugated pipe by cooling water.

5.Manual and automatic function

6.Corrugator adopt horizontal easy operation and beautiful.

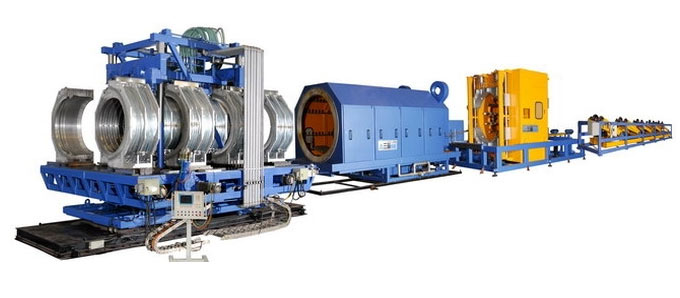

HDPE/PP double wall corrugated pipe extrusion line(Φ500-Φ800 /Φ800-Φ1200 ID)

1.Die head has special designed to aim at two-layer inline belling structure and feed material by double-spiral co-extrusion structure.

2.Big screen LCD human-computer interface system, CAN data bus technology can achieve full production process supervision and management.

3.Germany simens control system.

4.Corrugator adopt advanced shuttle-type structure, rectangular working trail, easy and convenient to change and regulating forming moulds and the long forming stroke makes good forming effect of pipes.

5.Foming Mould (water cooling) is made of high quality aluminium alloy which possess good heat dispersion and hot corrosion resistence. adopt advanced CNC processing technic to control precision strictly.

6.Imported accumulator ensure working table back automatically and disengage forming mould from cooling mandrel when power off suddenly or other bugs happened.

7.Two layers in-line belling moulds can bell the pipes in any length.
