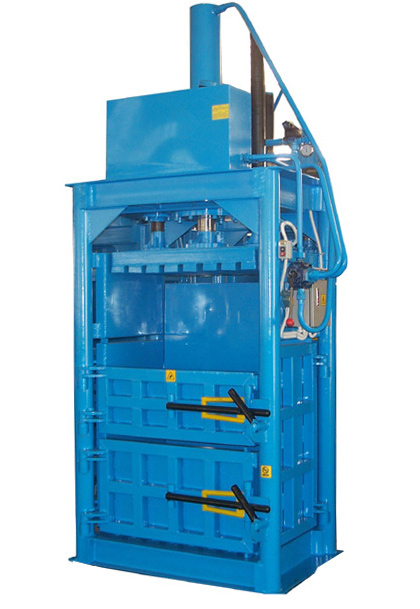

Vertical baler

Applications:

Y82 series of vertical balers can press & pack loose materials like cotton & wool yarns, waste cotton, pieces of cloth, sacks, wool tops, etc. The bales have larger density and uniform size, suitable for containerized transportation. Y82 series are also applied to press paper, cardboard (carton), plastic film & bottle, straw (hay), & thin metal, etc.

Features:

1. A wide range of baling forces from 3 to 315 tons.
2. Hydraulic drive, top-mounted cylinder(s).
3. Imported seals for all the cylinders.

Technical Specifications

Paper/Cardboard /Plastic Baler	Main Cyl. Force(ton)	Press Box Size (L×W×H) (mm)	Bale Size (W×H) (mm)	Bale Weight - Carton (kg)	Production - Carton (kg/hr)	Power (kW)
CY3280	3	600×500×985	600×500	20-30	80-120	1.5
YE82-12F	12	1200×900×1170	1200×900	150-200	900-1200	4
Y82T-25F	25	1100×800×1650	1100×800	200-250	600-800	15
Y82T-35F	35	1100×700×1500 1100×800×1500	1100×700 1100×800
YE82T-35F	35	1100×750×1500	1100×750
Y82T-63F	63	1100×800×1500	1100×800	200-300	600-1000
YE82T-100F	100	1100×740×1700	1100×740	250-350	750-1100
YE82-63FB	63	1100×1100×1600	1100×1100	350-500	1000-1500
YE82-100FB	100	1100×1100×1600	1100×1100	350-500	1000-1500	18.5
