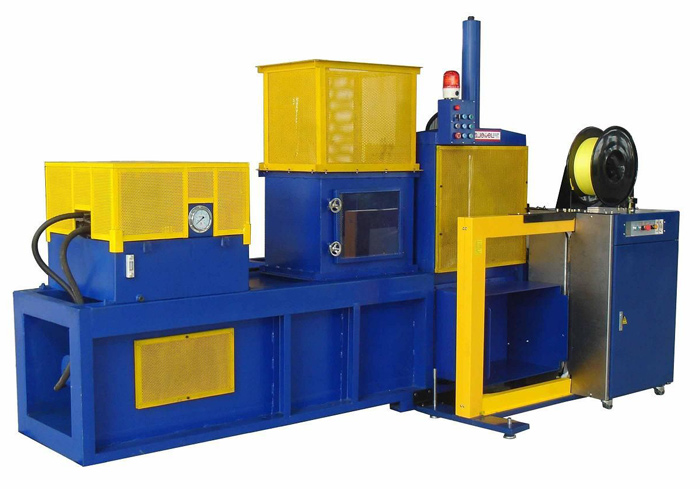

Horizontal baler

Applications:

HPA series of horizontal balers are applied for baling & automatic strapping of paper, cardboard (carton), newspaper, magazine, straw, PET bottle, plastic film & crate, etc.

Features:

1. PLC control, touch screen & observation window, real-time movement & error indication, bale length setting.
2. Floating necking design for.
3. Dispersed cutting blades on feed opening.
4. Automatic strapping.

Technical Specifications

Model	Main Cyl. Force (Ton)	Hopper Size (L×W) (mm)	Bale Size (W×H) (mm)	Bale Weight - Carton) (kg)	Production - Carton (tons/hr)	Power (kW)	Conveyor Width (mm)
HPA50	50	900×700	700×700	200-280	1.4-2.0	22+5.5	Air Duct
HPA63	63	1600×700	700×700	230-310	2.1-2.8	30+5.5	1400
HPA80A	80	1600×720	720×1100	400-530	3.2-4.2	45+7.5
HPA80B		1600×800	800×1100	430-580	3.4-4.6
HPA80C		1450×1100	1100×720	400-530	3.5-4.8
HPA100A	100	1600×1000	1000×1100	670-1050	6.0-8.5	55+15
HPA100B	100	1600×1100	1100×1100	720-1150	6.4-9.1	55+15
HPA125A	125	2200×1100	1100×1100	720-1150	7.2-10.2	74+7.5	1600
HPA125B	125		1100×1250	790-1250	7.9-11.2	74+7.5
HPA150A	150		1100×1100	760-1280	7.6-11.5	90+7.5
HPA150B	150		1100×1250	830-1400	8.3-12.6	90+7.5
HPA180	180		1100×1100	810-1350	11.3-16.2	180+7.5
