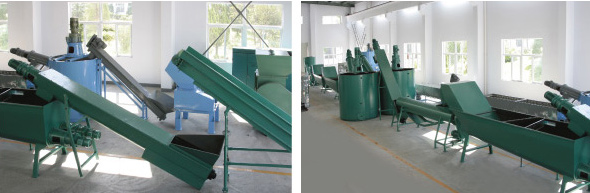

PET bottles washing line

The whole production equipment is researched, design and manufactured using European technology, it has such features as high efficiency, stable functioning, large capacity etc. Final product has good quality, low humidity content(less than 2%) and less impurities(less 400PPM ). We use on our machine good quality stainless steel (SUS-304, more than 3mm thickness) and it ensures whole production equipment long service life time.
The film washing and recycling machines are mainly used for dealing with waste PET bottle, HDPE Bottle, LUMP, PP barrel etc. One production line can process different material. The whole production line is surely of standard and high quality with CE certification and ISO 9001.

Specification

Name	(KW) Motor power	(mm) dimension	(T/H) Water consumption	(mm) Stainless steel standard	Electric standard
Belt conveyer	1.5 KW	35009003000	-	-	According To customer’s standard
Crusher	30 KW	180018003000	0.6-1.0	-
Screw conveyer	5.5 KW	28008002600	-	3-5
Horizontal washer	5.5 KW	-	1-2	3-5
Floating washer	2.2*2 KW	600015001700	3-4	3-5
Screw conveyer	2.2 KW	28008002600	-	3-5
Steam Washer	5.5 KW	180018002700	3-4	3-5
Screw conveyer	5.5 KW	28008002600	-	3-5
Горизонтальная мойка	5.5 KW	-	3-4	3-5
Floating washer	3 KW	520017002200	3-4	3-5
Floating washer	3 KW	520017002200	3-4	3-5
Dewatering machine	45 KW	180018001600	-	3-5
Drying system	11 KW	350022002200	-	3-5
Storage Hopper(with label scrapping function)	-	150015003800	-	-
Storage hopper	-	370015003500	-	-
Electric elements	-	20004501780	-	-
